Features of ball mill machine :
1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous operation;
3. Barrel lining and grinding media can apply various abrasive materials;
4. Installation and adjustment are very convenient and easy to be operated. Related: dry grid ball mill wet ball mill

Working principle of ball mill machne :

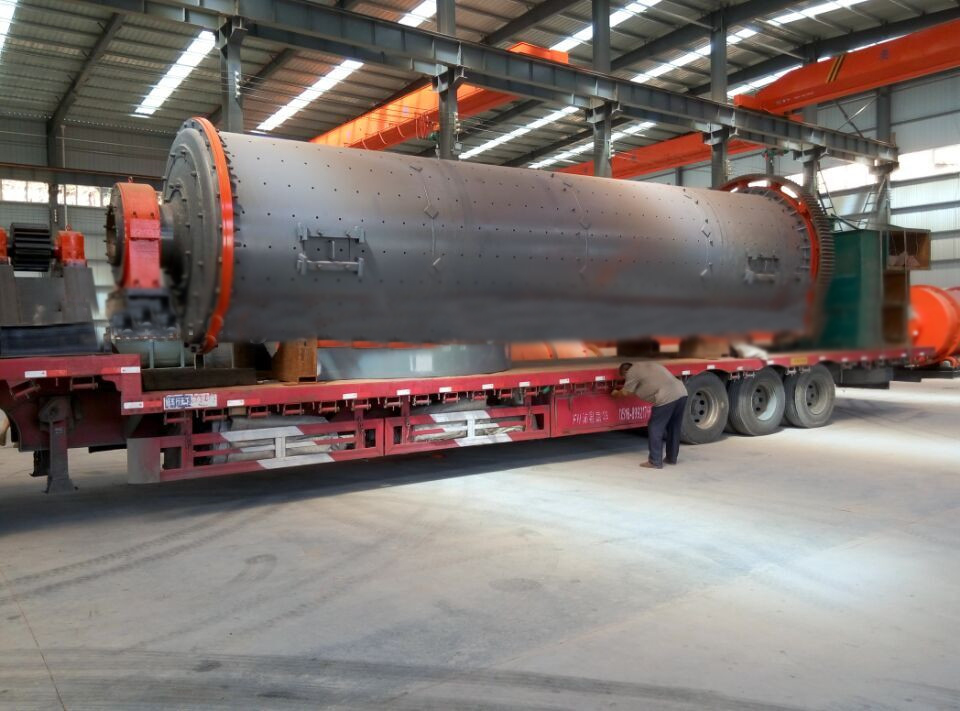

The grate ball mill is a horizontal cylinder rotating device driven by gears with two silos. The materials get into the first silo through the feeding quill shaft from the feeding device spirally and evenly. There are ladder lining board and corrugated lining board in the first silo loaded with steel balls of different sizes. The centrifugal force produced by the rotation of the cylinder raises the steel balls to a certain height which then fall down, thus making thumping and abrading to the materials. After the coarse grinding in the first silo, the materials get into the second silo through the monolayer partition panel with flat lining board embedded with steel sections for further crushing. The powder of the materials will be discharged from the unloading board to finish the grinding work.
