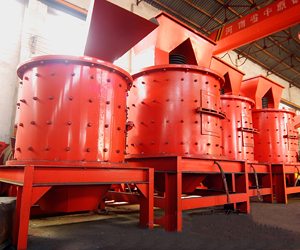

Vertical compound crusher

Applications Of Compound Crusher : A). Compound crusher is a fine crusher, discharging size can reach 0-3mm, can be widely used. B).Compound crusher widely used in crushing line and sand making production line, used in cement raw meal, clinker finely

• Get quotes
• Online consulting

Applications Of Compound Crusher :

A). Compound crusher is a fine crusher, discharging size can reach 0-3mm, can be widely used.

B).Compound crusher widely used in crushing line and sand making production line, used in cement raw meal, clinker finely homework.

C). Compound crusher also can be used in dolomite, the chamotte, gold, serpentine, blast furnace slag, coal gangue, phosphate rock medium hardness materials such as finely homework, especially suitable for hard limestone, dolomite, granite, basalt, such as making artificial sand or highway pavement stone processing.

Features Of Compound Crusher :

(1). Simple structure, low running cost.By using the theory of stone hit stone, wear small.
(2). High crushing ratio, energy saving.
(3). Compound crusher has finely, coarse grinding function.
(4). Compound crusher has small influenced of material moisture content, water cut of up to 8%.
(5). Compound crusher noise below 75 decibels (db) more work, less dust pollution.
(6). Compound crusher is suitable for crushing medium hard and hard materials.
(7). Compound crusher final product become into cubes, bulk density is big, small iron contamination.
(8). Compound crusher impeller from liner wear is small, easy maintenance.

Working Principle Of Compond Crusher :

1). The motor drives the rotor that fixed on the main bearing to run quickly toward certain direction when the machine works.

2).The materials are fallen into the throw-up disc and impacted by the high speed strips of the throw-up disc, and then strikes with the impact board under the effect of Centrifugal Force.
Because the impact board is bevel and the gravitation, the materials are threw to the taper crushing room and impacted by the high-rotating up hammer head.

3). After gaining sufficient energy, the materials are thrown to the impact board again and action repeats. The materials strike with each other in the crushing room and then are down to the column-shape rotor room. Then crushed, pressed, and ground and action repeats. In this way, the materials go through up, middle, and down rotor crushing rooms and crushed, pressed, and ground by the hammers and the impact boards, and finally the materials are gradually crushed into needed sizes and come out.

•
