Spiral Chute
Spiral Chute is made of fiberglass. It is applicable for separation of granula ranged from 0.2mm to 0.03mm metallic minerals such as iron, ilmenite, chromite, tungsten-tin ore, niobium-tantalum ore, gold placer, seashore monazite, rutile and zircon as well as other metallic and non-metallic minerals with adequate difference of density. It combines the advantages of spiral concentrator, shaking table and centrifugal concentrator.
features of spiral chute
Strong adaptability to fluctuation of feeding amount, density, size and grade
The surface of corundum forms strong friction concentration effect surpass plastic surface
Reasonable structure and small occupation area
High recovery, high efficiency, and precise separation
Light in weight, rust and corrosion resistant
Simple installation and Minimal maintenance requirements
Low operating cost and long operating life
Reliable running with minimal operator attention
Strong adaptability to fluctuation of feeding amount, density, size and grade
application of spiral chute separator:

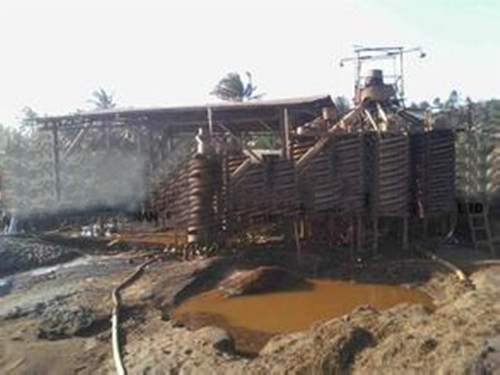

A. which is the best separating equipment, especially for separating sand ore in beach, riverside, seashore and stream.
B. metal mines such as iron, tin, tungsten, tantalum-niobium, gold ore, monazite, rutile, zircon and other metals.
C. non-metallic minerals coal mine, coal of coal chemical industry, the sulfur-selection factory
D. scientific research, the design department, the colleges and universities lab.
composition of spiral chute separator:
spiral chute consists of feeding equipartition device, feed chute, spiral slice, product intercepting trough, feeding hopper, and trough support.
working principle of spiral chute:
The spiral chute stands to adjust vertical line, and then the spiral chute can be fixed in the proper position by brandreth or wood. The mineral sand is sent to the two feeding ports by sand pump, and then the water is added to adjust the density of ore oar.
A centrifugal force is produced at the flow rate of spiral slope due to the fact that ore oar flows from the high place. The mineral and sand is separated through the gravity and centrifugal force caused by spiral flow. The concentrate flows out from the pipeline to the concentrator and the tailings are sent to the sand pool. Finally, the ore beneficiation is finished.
|
model
|
1500
|
1200
|
5900
|
600
|
400
|
|
Outer diameter(mm)
|
1500
|
1200
|
900
|
600
|
400
|
|
Spiral distance(mm)
|
540.720
|
900,720,540
|
675,540,405
|
450,360,270
|
240,180
|
|
Distance diameter ratio(spiral distance/diameter)
|
0.75,0.6,0.45
|
0.75,0.6,0.45
|
0.75,0.6,0.45
|
0.75,0.6,0.45
|
0.6,0.45
|
|
transverse
angle
|
9°
|
9°
|
9°
|
9°
|
9°
|
|
Install spiral number/set
|
4-2
|
4-2
|
4-2
|
3
|
2
|
|
Feeding size(mm)
|
0.3-0.02
|
0.3-0.03
|
0.3-0.03
|
0.2-0.02
|
0.2-0.02
|
|
Feeding concentration(%)
|
25-55
|
25-55
|
25-55
|
25-55
|
25-55
|
|
capacity(t/h)
|
8-6
|
4-6
|
2-3
|
0.8-1.2
|
0.15-0.2
|
|
dimension
length(mm)
|
1560
|
1360
|
1060
|
700
|
460
|
|
width(mm)
|
1560
|
1360
|
1060
|
700
|
460
|
|
height(mm)
|
5230
|
5230
|
4000
|
2600
|
1500
|
|
weight(kg)
|
800
|
600
|
400
|
150
|
50
|
