Indirect type dryer introduction: our company produces the indirect heat transfer dryer, it is widely used in building materials, metallurgy, chemical industry, cement industry for drying slag limestone, coal powder, slag, clay and other materials. T
Indirect type dryer introduction:

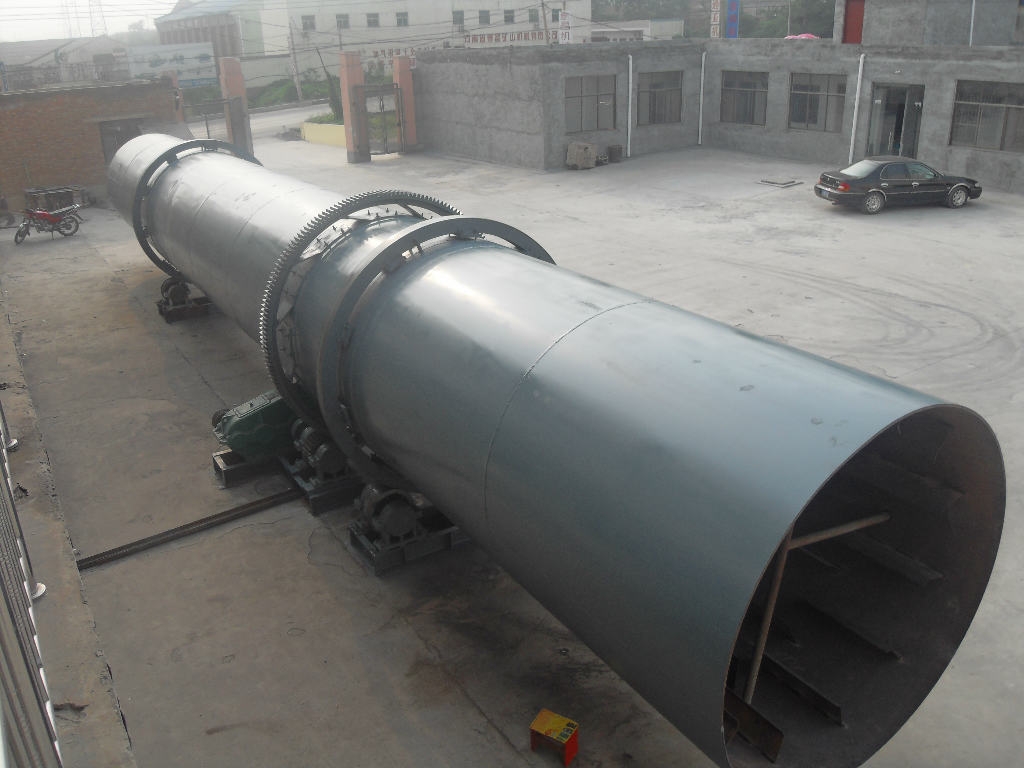

our company produces the indirect heat transfer dryer, it is widely used in building materials, metallurgy, chemical industry, cement industry for drying slag limestone, coal powder, slag, clay and other materials. This machine is mainly composed of rotors, the feed plate, driving device, supporting device and sealing ring and other components. With reasonable structure, well made, high output, low energy consumption, convenient operation.
Indirect dryer performance characteristics:
1, the equipment investment is needed for 1/6 of the imported products.
2, material moisture to ensure below 0.5%, dry mortar and slag powder production line is the preferred product.
3, barrel self insulation thermal efficiency is as high as 70% (traditional single drum dryer heat efficiency is only 35%), improve the thermal efficiency is 35%.
4, fuel can be coal, oil and gas. It Can dry pellet and powder materials with below size of 20mm.
5, it covers an area of about 50% lower than single drum dryer and civil investment to reduce 50%, power consumption reduced by 60%.
6, we can regulate the end moisture data according to user requirements easily.
7, the low temperature of air outlet, dust removal equipment is with long using time.
8, no size for gear transmission, using the wheel transmission.
Working principle of rotary coal slime dryer
♦ Materials are sent to hopper of the machine by belt conveyor or bucket elevator
♦ Materials enter the barrel installed with slope to horizontal line from the higher side
♦ Hot air enters the barrel from the lower side, and then materials and hot air mix together
♦ Materials go to the lower side by gravity when the barrel is rotating
♦ Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of dryer drying machine.
Technical data:
|
Barrel diameter*length
|
Internal diameter of outside barrel
mm
|
External diameter of inside barrel
mm
|
Length of barrel body
m
|
Cylinder capacity
m3
|
Cylinder slope
|
Feed board type
|
Highest air intake temperature
°C
|
dimension
|
|
Φ1.5×15m
Φ1.5×17m
Φ1.5×19m
|
1500
|
500
|
15
17
19
|
20.27
22.97
25.68
|
3-5%
|
Lifting type
|
850
|
16.2×2.7×2.7
18.2×2.7×2.7
20.0×2.9×2.9
|
|
Φ1.8×21m
Φ1.8×23m
Φ1.8×25m
|
1800
|
650
|
21
23
25
|
35.91
39.33
42.75
|
3-5%
|
Lifting type
|
850
|
22.5×2.7×2.7
24.5×2.9×2.9
26.5×2.9×2.9
|
|
Φ2.2×21m
Φ2.2×23m
Φ2.2×25m
|
2200
|
800
|
21
23
25
|
58.10
63.61
69.15
|
3-5%
|
Lifting type
|
850
|
--
|
