mobile crushing station
The mobile crushing station can directly choose the working site, be directly driven to the working site without transportation and the materials can directly reach the granularity of final products. It is especially suitable for processing and crush
The mobile crushing station can directly choose the working site, be directly driven to the working site without transportation and the materials can directly reach the granularity of final products. It is especially suitable for processing and crushing building wastes. The mobile crushing station greatly reduces the investment cost but improves the investment income.
Mobile crusher has the features of reasonable matching of all levels of crushing equipment; smooth discharging of the whole production line, reliable running condition, convenient operation and high efficiency and energy conservancy. It has good mobility and can extend together with the raw materials site or construction site and has many types of combinations to satisfy the processing needs of different materials.
The portable impact crusher (plants) has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy. Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
Principle:

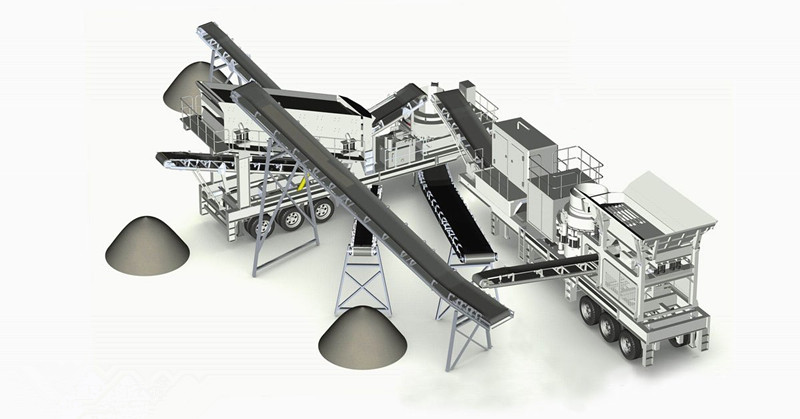

The impact crusher plant (mobile crushing and screening plants) is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyor is responsible for material transmitting and piling up between each crushing station.
|
MP-Jseries mobile jaw crushing station
|
MP-J6
|
MP-J7
|
MP-J8
|
MP-J10
|
|
Inlet size(mm×mm)
|
600×1060
|
760×1000
|
850×1150
|
1070×1400
|
|
Max feeding material size(mm)
|
500
|
630
|
720
|
950
|
|
Adjusting range of dsicharging port(mm)
|
60-175
|
70-200
|
70-220
|
100-250
|
|
capacity(t/h)
|
Max 280
|
Max 400
|
Max 500
|
Max 800
|
|
Power equipment
|
|
motor
|
Cummins Tier3
|
Cat C9
|
Cat C12
|
Cat C15
|
|
power(kw)
|
164
|
242
|
317
|
390
|
|
Feeding hopper
|
|
Hopper volume(m3)
|
6
|
7
|
8
|
10
|
|
bar feeder
|
|
Driving way
|
hydraulic
|
hydraulic
|
hydraulic
|
hydraulic
|
|
Main belt machine
|
|
Belt width(mm)
|
1000
|
1000
|
1200
|
1400
|
|
Belt moving device
|
|
Driving way
|
hydraulic
|
hydraulic
|
hydraulic
|
hydraulic
|
|
Permanent magnet dump iron remover
|
|
Removing iron device
|
optional
|
optional
|
optional
|
optional
|
|
Dimension and weight
|
|
working condition and dimension
|
|
length(mm)
|
12600
|
14800
|
16000
|
16500
|
|
width(mm)
|
4060
|
4100
|
4200
|
4300
|
|
height(mm)
|
4160
|
4400
|
4400
|
6000
|
|
transport condition and dimension
|
|
length(mm)
|
12600
|
14800
|
16000
|
16500
|
|
width(mm)
|
2760
|
2850
|
3200
|
3500
|
|
height(mm)
|
3460
|
3900
|
3800
|
3900
|
|
weight(t)
|
39
|
48
|
65
|
115
|
