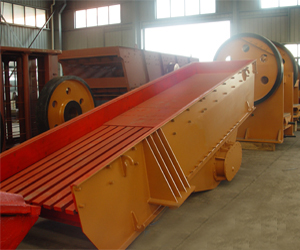

vibrating feeder
Application of vibrating feeder The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo toreceiving device uniformly, periodically and continuously in the production flow and to feed mater
Application of vibrating feeder
The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo toreceiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Vibrating Feeder is widely
used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc
Working Principle of vibrating feeder
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like Para curve,then fall down. The materials will move forward on the slope surface. vibration feeder for quarry
Feature of Vibrating Feeder
1. Reasonable structure, strong rigidity, impact resistance
2. Closed structure to prevent powder pollution
3. Stable vibration
4. Less wear parts
5.Adjustable grizzly bar gap
6. Can be re-started with material many times
7. Strong adaptability
|
model
|
Trough size(Mm)
|
Feeding size(Mm)
|
Feeding capacity(T/H)
|
Main shanft speed (R/Min)
|
Motor power(Kw)
|
Groove face Angle
(°)
|
weight
(not including motor)(Kg)
|
dimension(Mm×Mm×Mm)
|
|
GZD-750×250
|
750×2500
|
≤300
|
80
|
1000
|
1.5×2
|
0-10
|
1290
|
2580×1100×1400
|
|
GZD-900×300
|
900×3000
|
≤450
|
100
|
1000
|
3.7×2
|
0-10
|
1994
|
3200×1784×866
|
|
GZD-1000×360
|
1000×3600
|
≤500
|
120
|
1000
|
5.5×2
|
0-10
|
2000
|
3900×1600×1500
|
|
GZD-1200×420
|
1200×4200
|
≤600
|
200
|
1000
|
5.5×2
|
0-10
|
3100
|
4500×1800×1600
|
