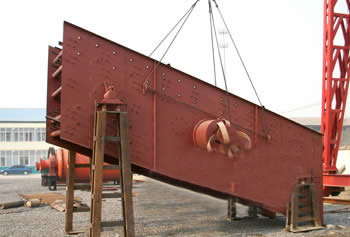

Brief Introduction of chemical industry vibrating screen : Circle vibrating screen's movement locus is a circumference. It is a new multilayer, high effecient vibrating screen. The circle vibrating screen adopt cylinder eccentric shaft vibrator and p
Brief Introduction of chemical industry vibrating screen :
Circle vibrating screen's movement locus is a circumference. It is a new multilayer, high effecient vibrating screen. The circle vibrating screen adopt cylinder eccentric shaft vibrator and partial block to adjust swing. It can be used in mine, core, mill run, construction, electricity and chemical department to take classify function. It has the advantages of reliable structure, strong exciting force, high screen effecient, small vibrating noise, simple maintenance, safe operation and so on.
Features of chemical industry vibrating screen :
1. It has novel structure, advanced technology data, large handling capacity, high screening efficiency.
2. It used cylinder-type eccentric shaft vibrator and partial block to adjust amplitude, easy maintenance.
3. Withspring steels woven screen and punched plate screen, long life span, no plugging the hole.
4. Used rubber isolation spring, long life, little noise and stable operation
Working principle of chemical industry vibrating screen :
Vibrating screen is single-axis circular-movement inertial vibrating screen, the working of circular vibrating screen depends on inertial motor and inertial strength produced by eccentric plate, because of the vibration of screen box, the materials are threw out, so that materials of certain size go through the screen mesh, and the screening aim is realized. Since the magnetic exciter is installed on the gravity center of screen box, the two long elliptical axis form a shape like a Chinese character, and the upper of long elliptical axis in inlet end is in the same direction with the outlet, which favors the spread of materials which is in the screen box. However, the upper of long elliptical axis in outlet end is opposite to the direction of the outlet, which can reduce the movement speed of materials, and help the difficult-screened materials go through the screen mesh. What's more, the effective area of screen is increased because of the elliptical screen surface; As a result, the processing capacity is promoted.
The main technical data of chemical industry vibrating screen :
|
Type
|
Sieve
layer
|
Sieve
area
(m2)
|
Mesh
size
(mm)
|
Max.
Feeding
size
(mm)
|
Capacity
(t)
|
Vibrating
frequency
(r/min)
|
Double
amplitude
(mm)
|
Power
(kw)
|
Sieve
obliquity
(o)
|
Sieve
specification
(mm)
|
Weight
(kg)
|
|
2YK1230
|
2
|
7.2
|
4-50
|
400
|
12-78
|
800-970
|
8
|
7.5
|
20
|
1200*3000
|
4200
|
|
3YK1230
|
3
|
10.8
|
4-50
|
400
|
13-80
|
800-970
|
8
|
7.5
|
20
|
1200*3700
|
4600
|
|
2YK1237
|
2
|
8.88
|
4-50
|
400
|
15-86
|
800-970
|
8
|
7.5
|
20
|
1200*3700
|
4600
|
|
3YK1237
|
3
|
13.22
|
4-50
|
400
|
16-90
|
800-970
|
8
|
7.5
|
20
|
1500*3500
|
5200
|
|
2YK1535
|
2
|
10.5
|
5-50
|
400
|
20-125
|
800-970
|
8
|
11
|
20
|
1500*3500
|
5890
|
|
3YK1535
|
3
|
15.75
|
5-50
|
400
|
21-125
|
800-970
|
8
|
11
|
20
|
1500*3500
|
6700
|
|
2YK1545
|
2
|
13.5
|
5-50
|
400
|
22-150
|
800-970
|
8
|
15
|
20
|
1500*4500
|
6330
|
|
3YK1545
|
3
|
20.25
|
5-50
|
400
|
22-150
|
800-970
|
8
|
15
|
20
|
1500*4500
|
6800
|
|
4YK1545
|
4
|
27
|
5-50
|
400
|
22-155
|
800-970
|
8
|
18.5
|
20
|
1500*4500
|
7800
|
|
2YK1548
|
2
|
14.4
|
5-50
|
400
|
23-162
|
800-970
|
8
|
15
|
20
|
1500*4800
|
6980
|
|
3YK1548
|
3
|
21.6
|
5-50
|
400
|
23-162
|
800-970
|
8
|
15
|
20
|
1500*4800
|
7700
|
|
4YK1548
|
4
|
28.8
|
5-50
|
400
|
23-162
|
800-970
|
8
|
18.5
|
20
|
1500*4800
|
8700
|
|
2YK1848
|
2
|
17.28
|
5-80
|
400
|
25-206
|
750
|
8
|
15
|
20
|
1800*4800
|
9080
|
|
3YK1848
|
3
|
25.92
|
5-80
|
400
|
32-276
|
750
|
8
|
18.5
|
20
|
1800*4800
|
9600
|
|
4YK1848
|
4
|
34.54
|
5-80
|
400
|
32-285
|
750
|
8
|
22
|
20
|
1800*4800
|
11100
|
|
2YK1854
|
2
|
19.44
|
5-80
|
400
|
32-312
|
800-970
|
8
|
18.5
|
20
|
1800*5400
|
10150
|
|
3YK1854
|
3
|
29.16
|
5-80
|
400
|
32-312
|
800-970
|
8
|
22
|
20
|
1800*5400
|
10840
|
|
4YK1854
|
4
|
38.88
|
5-80
|
400
|
32-336
|
800-970
|
8
|
30
|
20
|
1800*5400
|
12840
|
|
2YK2160
|
2
|
25.2
|
5-100
|
400
|
50-475
|
970
|
8
|
30
|
20
|
2100*6000
|
11780
|
|
3YK2160
|
3
|
37.8
|
5-100
|
400
|
50-475
|
970
|
8
|
30
|
20
|
2100*6000
|
12800
|
|
4YK2160
|
4
|
50.4
|
5-100
|
400
|
50-497
|
970
|
8
|
37
|
20
|
2100*6000
|
14800
|
|
2YK2460
|
2
|
28.8
|
5-100
|
400
|
65-550
|
970
|
8
|
37
|
20
|
2400*6000
|
15600
|
|
3YK2460
|
3
|
43.2
|
5-100
|
400
|
70-620
|
970
|
8
|
37
|
20
|
2400*6000
|
17600
|
|
4YK2460
|
4
|
57.6
|
5-100
|
400
|
80-680
|
970
|
8
|
45
|
20
|
2400*6000
|
19600
|
