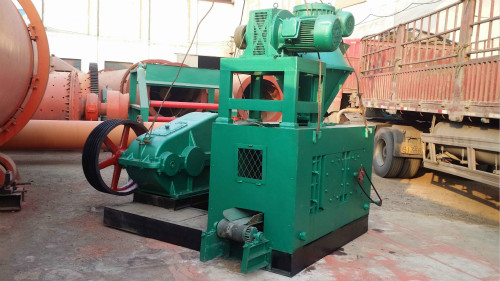

metal powder briquette machine
Brief introduction of metal powder ball press machine: Ball press machine is mainly used for pressing hard molding powder material, the feature is big molding pressure, host revolution is adjustable, equipped with screw conveying device. The ball pre
Brief introduction of metal powder ball press machine:
Ball press machine is mainly used for pressing hard molding powder material, the feature is big molding pressure, host revolution is adjustable, equipped with screw conveying device.
The ball press machine is suitable for light materials like coke powder, oxidation iron sheet, dust, coal slime, all kinds of metallurgy powder, Sponge iron carbon products , has obvious press effect.
high efficiency working metal powder ball press machine Features
1.The roller is made by hard materials with good wear resistance and long life time.
2.The service life of wearing parts is up to 4000 hours.
3.The machines electricity coal reduce by 60%.
4.The machine is easy to operate and maintain.
5.The molding materials are energy saving, easy to tansport and higher utilization of waste.
6.The final products are smokeless, non-toxic, none peculiar and environmental protection.
7.The end outlet shape of products can be oval, round, square, ball egg-shaped and pillow shaped.
Working Priciple
This series of briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball
|
model
|
Roll size
(mm)
|
Main shaft speed
(r/min)
|
Motor model
|
Motor power
(kw)
|
capacity
(t/h)
|
dimension(m)
|
|
290-2
|
290×200
|
12-15
|
Y132M-4
|
5.5-7.5
|
1-3
|
1.6×1.2×1.4
|
|
360-2
|
360×250
|
12-15
|
Y132M-4
|
7.5-11
|
3-5
|
2.1×1.3×1.76
|
|
430-2
|
430×250
|
12-15
|
Y132M-4
|
15-18.5
|
4-7
|
2.3×1.53×1.9
|
|
500-2
|
500×300
|
12-15
|
Y160L-4
|
22-30
|
5-10
|
2.6×1.75×2.1
|
|
650-2
|
650×350
|
10-13
|
Y180L-4
|
37-55
|
8-13
|
3.42×2×2.2
|
|
750-2
|
750×380
|
10-13
|
Y200L-4
|
45-75
|
12-17
|
3.7×2.55×2.6
|
|
850-2
|
850×460
|
10-13
|
Y225S-4
|
75-110
|
15-20
|
3.9×2.6×2.7
|
|
1000-2
|
1000×530
|
10-13
|
Y225M-4
|
110-132
|
20-30
|
4×2.8×2.8
|
|
the proportion of material is different, the motor size and output size will be different
|
