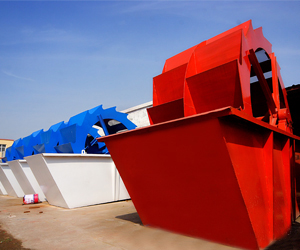

sand washer
The efficient sand washing machine of GX series is a kind of cleaning equipment of international advanced level for sand and slag pellets, developed on the basis of introducing foreign outstanding technology of the same kind of products. Application
The efficient sand washing machine of GX series is a kind of cleaning equipment of international advanced level for sand and slag pellets, developed on the basis of introducing foreign outstanding technology of the same kind of products.
Application of hot sell sand washing machine :
This series sand washing machine is widely used in metallurgy, building materials, and other industries washing, grading, cleaning and other operations, also applicable to fine-grained and coarse-grained materials washing operation. Especially for construction sites, gravel plants, hydroelectric, concrete dam site, post and electric pole and the foundry sand and gravel required for "70" sand, glass sand and oil sand backfill pressure washing, grading and dehydration. For sand production line, sand washing machine is necessary.
Working principle of hot sell sand washing machine :
When the sand washing machine is working, the motor through v-belts, deceleration machine, gear decelerating make the impeller turn slowly. The sand have washed into the tank, with the driving of impeller, grind each other and remove the impurities, and destruct the coated sand of water vapor layers for better dehydration; At the same time, adding water to form powerful flow of water to take a small proportion of the impurities and the foreign body away. The clean sand is taken by the blade from rotating impeller last into the material slot, complete the cleaning sand.
Features of hot sell sand washing machine :
1.The sand washing machine features simple structure, big gap between impeller transmission bearing system and water as well as raw materials, so that it protects the bearing from dipping into the water, sand and other pollutants.
2.Mid-fineness sand seldom lapses out. The grade and fineness of washed build sand can reach required standard.
3.There are no wearing parts except sieves.
4.Long service life and little maintenance.
The main technical data of hot sell sand washing machine :
|
Specification
|
GX2200
|
GX2600
|
GX2900
|
GX3500
|
|
Wheel bucket diameter(mm)
|
2200
|
2600
|
2900
|
3500
|
|
Rotation speed(r/min)
|
1-2
|
1-2
|
0.8-1.5
|
0.8-1.2
|
|
Processing capacity(t/h)
|
15-30
|
20-50
|
50-100
|
120-200
|
|
Motor power(kw)
|
4
|
5.5
|
7.5
|
11
|
|
Total weight(kg)
|
4300
|
5600
|
8100
|
9900
|
|
Dimensions (L*W*H) (mm)
|
3150*1910*2280
|
3520*2390*2690
|
3820*2640*3200
|
4420*2930*3800
|
