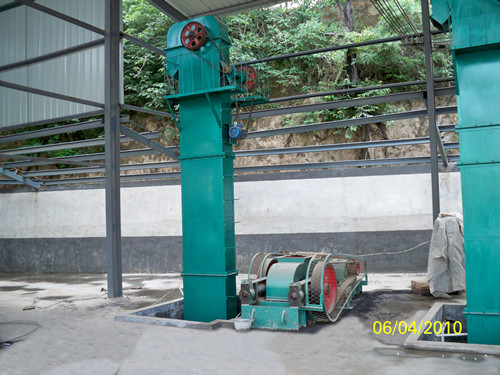

bucket elevator
bucket elevatoris the universally lifting conveying equipment in vertical types. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device
bucket elevator is the universally lifting conveying equipment in vertical types. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.
Functions:
Bucket elevator is composed of machine head, main frame, maintenance cylinder, ventilators, dustpan,dustpan belt and machine base. The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.
Features
1. Fully closed, no dust flying that will help to improve working conditions.
2. Efficiently avoid the accumulation of products and minimize the breakage of material. The bucket elevator can operate continually under full load condition and can start smoothly under bucket full.
3. A wide range of elevated, not only handle the general powder, and elevate the mill cut larger materials .
4. Long service life, it seldom occurs extrusion and collision phenomenon.
5. Easy operation and maintenance, less vulnerable pieces.
|
model
|
Transmission device making method
|
Cylindrical gear reducer
NO.
|
Motor model
|
Transmission device power
Kw
|
Weight of transmission device
Kg
|
|
Right outfit transmission device
|
Left outfit transmission device
|
|
D160
|
C1
|
ZQ250-V-3Z
|
ZQ250-V-4Z
|
Y112M-6
|
2.2
|
170
|
|
D250
|
C1
|
ZQ350-V-3Z
|
ZQ350-V-4Z
|
Y132S-6
|
3
|
449
|
|
C2
|
ZQ350-V-3Z
|
ZQ350-V-4Z
|
Y132M2-6
|
5.5
|
470
|
|
C3
|
ZQ400-V-3Z
|
ZQ400-V-4Z
|
Y132M2-6
|
5.5
|
568
|
|
C4
|
ZQ400-V-3Z
|
ZQ400-V-4Z
|
Y160M-6
|
7.5
|
640
|
|
D350
|
C1
|
ZQ400-V-3Z
|
ZQ400-V-4Z
|
Y132M2-6
|
5.5
|
590
|
|
C2
|
ZQ400-V-3Z
|
ZQ400-V-4Z
|
Y160M-6
|
7.5
|
663
|
|
C3
|
ZQ500-V-3Z
|
ZQ500-V-4Z
|
Y160L-6
|
11
|
855
|
|
C4
|
ZQ500-V-3Z
|
ZQ500-V-4Z
|
Y160L-6
|
11
|
855
|
|
D450
|
C1
|
ZQ400-IV-3Z
|
ZQ400-IV-4Z
|
Y160M-6
|
7.5
|
685
|
|
C2
|
ZQ500-IV-3Z
|
ZQ500-IV-4Z
|
Y160L-6
|
11
|
895
|
